Acrylic (PMMA) Injection Molding

Design Considerations for Acrylic Molding

When it comes to acrylic injection molding, thoughtful design is essential for achieving optimal results.

Here are some key considerations:

1. Designing for Manufacturability (DFM)

Effective DFM involves creating designs that can be easily and efficiently produced.

This means considering factors such as part geometry, assembly methods, and the capabilities of the injection molding process.

Simplifying designs can help reduce production costs and lead times.

2. Importance of Wall Thickness and Gate Placement

Consistent wall thickness is vital for ensuring an even flow of the molten acrylic and minimizing issues like warping or sink marks.

Ideally, walls should be designed to be uniform, typically around 2-4 mm thick.

Additionally, gate placement—where the molten acrylic enters the mold—should be strategically chosen to ensure balanced filling and optimal cooling.

3. Techniques for Incorporating Complex Shapes and Features

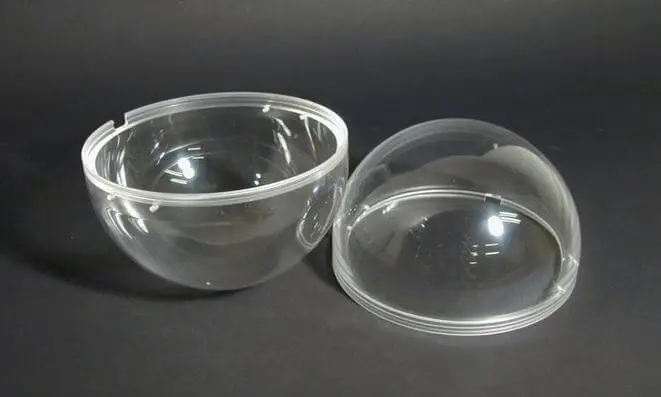

Acrylic is versatile, allowing for intricate designs.

Techniques such as using undercuts, ribs, and integrated features (like snap-fits) can enhance functionality without sacrificing aesthetics.

However, it’s essential to ensure that these features do not complicate the mold design or hinder the ejection process.

Applications of Acrylic Injection Molding

Acrylic injection molding is a go-to choice across numerous industries due to its exceptional properties and versatility.

Here are some common applications and examples of products made from acrylic:

Common Uses in Various Industries:

• Automotive: Acrylic is used for automotive components like taillight covers and dashboards due to its clarity, lightweight nature, and resistance to UV damage. It offers a safer alternative to glass while maintaining aesthetic appeal.
• Consumer Products: From household items to electronics, acrylic is prevalent in products such as kitchenware, storage containers, and furniture accents. Its shatter-resistant properties make it ideal for everyday use.

Examples of Products Made from Acrylic:

• Displays: Acrylic is commonly used for retail displays, signage, and point-of-sale materials. Its clarity and ability to be molded into various shapes make it perfect for attracting customers.
• Lenses: Many optical devices, including camera lenses and eyeglasses, utilize acrylic for its excellent light transmission and optical clarity. This makes acrylic a favored choice for high-quality optical products.
• Aquariums: Acrylic is often chosen for aquarium construction due to its lightweight and high impact resistance compared to glass, allowing for larger tanks with seamless designs.

Challenges and Solutions in Acrylic Molding

While acrylic injection molding offers numerous benefits, it also comes with its own set of challenges.

Understanding these challenges and implementing effective solutions can significantly enhance the molding process.

Common Challenges in the Process:

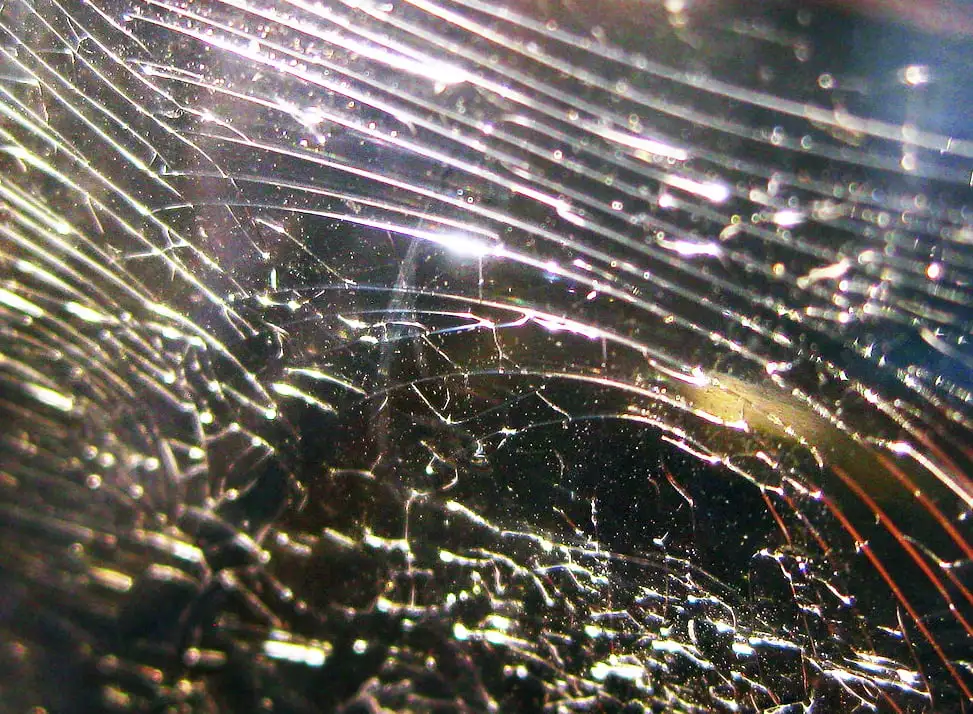

• Brittleness and Cracking: Acrylic is susceptible to stress fractures, especially during the molding process. This can lead to defects in the final product if not managed properly.
• Warpage: Acrylic parts can warp during cooling if the cooling process is uneven or if the mold design is not optimized.
• Moisture Sensitivity: Acrylic material must be kept dry prior to processing. Any moisture can lead to imperfections in the molded parts.

Solutions and Best Practices to Overcome These Challenges:

• Stress Management: To mitigate brittleness, ensure that parts are designed with appropriate wall thickness and avoid sharp corners that can concentrate stress. Using appropriate mold design and processing parameters can also help.
• Controlled Cooling: Implement cooling channels in the mold to ensure even cooling of the acrylic. This helps prevent warpage and maintains dimensional accuracy. Additionally, the temperature must be monitored closely throughout the process.
• Material Drying: Always dry acrylic pellets before use, ideally in a dehumidifying dryer. This removes any moisture and helps ensure high-quality final products. Regularly check the moisture content of your material to maintain consistency.

Best Practices for Successful Acrylic Molding

Implementing best practices is crucial to achieving optimal results in acrylic injection molding.

These strategies can enhance both efficiency and product quality.

Tips for Optimizing the Injection Molding Process:

• Precise Temperature Control: Maintain the correct melt temperature for acrylic to ensure consistent flow and fill of the mold. This reduces the risk of defects and improves the overall finish.
• Optimize Injection Speed and Pressure: Adjusting the injection speed and pressure based on the part’s complexity can help achieve better detail and minimize defects. Too high a pressure can lead to stress fractures, while too low may cause incomplete fills.
• Regular Equipment Maintenance: Ensure that the injection molding machine and molds are regularly maintained and cleaned. This prevents buildup and prolongs the life of the equipment, leading to better consistency.

Importance of Testing Prototypes and Quality Control:

• Prototype Testing: Before full-scale production, create prototypes to test design, functionality, and manufacturability. This step helps identify any issues early and allows for adjustments without incurring significant costs.
• Quality Control Procedures: Implement rigorous quality control measures throughout the molding process. Regularly inspect parts for dimensional accuracy, surface finish, and structural integrity. This ensures that any defects are caught early, maintaining high product standards.
