Master Draft Angle Injection Molding: Guide & Best Practices

Draft angles in injection molding ensure smooth part ejection & quality. Learn about linear, curved & variable drafts & best practices for successful molding!

Draft angle injection molding in plastic manufacturing is similar to putting a little tilt in the mold walls. This tilt allows the good plastic product to easily eject without sticking to it or damaging it.  This is important because, without tilt, the final product could be deformed or aesthetically unappealing.

Depending on the object’s profile that they will manufacture, there are several kinds of draft angles. Some of them are basic, like inclined planes, and others are complicated.

It is always best to follow the best practices. Read the article below as we cover every aspect of draft angle injection molding.

Types of Draft Angle Injection Molding

A dotted line runs vertically inside the object marking the Draft Angle with an arrow and label pointing outward from the objects vertical wall

Draft angle injection molding comes in several types, and they are as follows:

1. Linear Draft

Linear draft is the most basic property of draft angle applications in injection molding. It represents a constant angle in injection molding.

Like a never-ending slope, the linear draft is preferred for basic parts with a single curvature.

This ensures easy ejection of the finished part from the mold cavity without defects and without reducing the rate of production.

The linear draft is like the steady hand of molding that guides every process toward the finished product with ease and without complications. It yields uniformity in output like plastic pails.

2. Curved Draft

The curved draft is another popular method of utilizing draft angle properties. Just like linear draft, it is also used to aid in the ejection of the part from the mold cavity.

However, linear draft uses a constant angle throughout its application while curved draft utilizes a gentle curve in its applications.

This type of draft is preferred for parts with a more complicated geometry or those with multiple curvatures where a linear slope is not enough. Like a winding road that goes through hills and valleys, a curved draft applies to this description.

It is used for complicated molds where the finished part would easily come off without defects.  In injection molding, the variable draft provides flexibility in producing various shapes and multiple contours of modern products.

3. Variable Draft

Variable draft is the most advanced method in utilizing draft angle applications in injection molding. Unlike linear or curved drafts, it does not use a fixed angle throughout the part design.

It is rather a variable angle that suits the requirement of the design. This method is commonly used for parts with complicated geometry. Or it is for products made up of multiple parts where fixed draft angles are not enough.

Left model with curved edges and appropriate variable draft marked as correct right model with sharp edges marked as incorrect

Best Practices for Draft Angle Injection Molding

When you’re creating a part using draft angle injection molding, there are some best practices that should be followed to ensure optimum results:

1. Design for Draft:  Design parts with sufficient draft angles for easy ejection. This is the foundation for easy molding.

2. Select the Proper Mold Material: Mold selection should be based on the specific application and strong enough for the draft angle. This is the foundation for easy molding.

3. Control Mold Temperature: Avoid mold warpage and ensure positive ejection by controlling mold temperature. This needs to be constant – so if it’s warm, keep it warm.

4. Select Molding Compound: Select a molding compound compatible with the mold material and strong enough for the draft angle. This is the foundation for easy molding.

5. Adjust Molding Conditions: Adjust temperatures, pressures, hold pressures, and cooling to maximize the draft angle and minimize warpage. This is the foundation for easy molding.

Follow these best practices, and you’ll be on your way to drafting angle injection molding perfection!

Factors Affecting Draft Angle Injection Molding

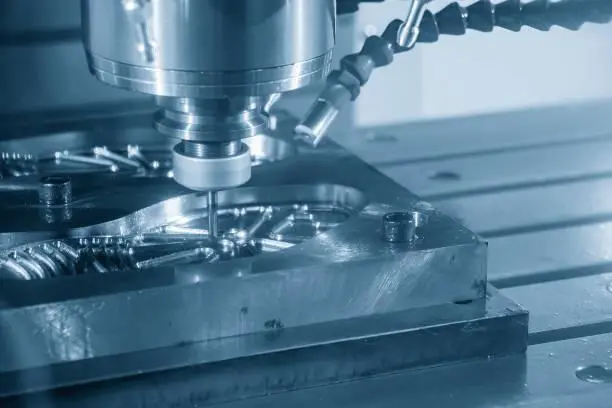

Close up of a CNC Computer Numerical Control machine in operation precisely cutting a piece of metal

Injection molding draft angle factors play an important role in the success of the design. Let’s look at the main factors that influence it:

Mold Design The mold design must be carefully planned and executed. Ejection should be easy and prevent warping. A good mold design will ensure successful molding.

Material Selection The molding material itself will dictate certain draft requirements. Different materials come with different thermal expansion coefficients and, therefore, different draft requirements. Choosing the correct material is like building it on solid ground.

Molding Conditions Molding conditions have the most impact on draft angle. Temperature, pressure, and cooling time are some of the factors that have a direct effect. These conditions must be fine-tuned like a masterpiece to achieve optimal results cycle after cycle.

Draft Angle Injection Molding: Common Challenges and Solutions

Draft angle injection molding is an important topic in plastic molding. However, with its importance, there are still some issues occurring during the processing.

An illustration showing two types of container designs highlighting considerations for draft angle in injection molding

Let’s take a look together:

Issue: Warpage caused by less than optimal draft angle, less than optimal mold design, or less than optimal molding conditions.

Remedy: Increase the draft angle so that there is no warpage and ejection.

Issue: The molded part is hard to eject because of less than optimal draft angle or mold design.

Remedy: Modify molding conditions (temperature, pressure, cooling rate) for no warpage and ejection.

Issue: Scratches, bubbles, or air pockets are caused by a draft angle that is less than optimal or by molding conditions that are less than optimal.

Remedy: Apply surface treatment (coating, lubricant) for no surface scratches, bubbles, or air pockets.

To sum up, draft angle injection molding is an integral part of plastic processing. It ensures unproblematic part ejection and the integrity of the finished parts. Linear, curved, and variable draft angles provide various ways to tackle the most complex of modern-day designs.

By following injection molding best practices, processors can achieve optimum results every cycle. Some of the common challenges faced by injection molders include warpages and surface defects like sink marks and vents.

You can rely on HiTop Industrial for injection molding services as they minimize problems and have expertise. It would help if you had professionals for designing with the least draft angle using thicker wall sections. Also, choosing the right gate locations and sizes and optimizing the molding conditions are equally important.

You must consider the draft angle injection molding techniques to ensure efficient, consistent, and superior plastic processing.

FAQs

How Does Mold Design Affect Draft Angle Injection Molding?

In draft angle injection molding, the mold design influences the ejection and also avoids the warpage of the molded parts. Proper geometry in the mold base allows the easy ejection of the parts without any stickiness and preserves quality.

Do Different Materials Need Different Draft Angles in Injection Molding?

Yes. Due to the nature of the thermoplastic and thermosetting polymers, they have their own thermal expansion coefficients. And they influence the draft angle. Some materials need bigger draft angles based on their nature to avoid deformation of the molded parts.

How does Draft Angle Injection Molding Avoid Warpage in Molded Parts?

Draft angle injection molding avoids warpage by facilitating easy and uniform ejection from the mold cavity without any stickiness. Thus, it reduces the stress that develops on the molded parts and preserves dimensional stability.

Are There Any Design Limitations for Draft Angle in Injection Molding?

Yes. Along with the part geometry, the surface finish requirements and the draft angle limitations should be checked by the designer. Proper design and the geometry of the mold base ensures the success of the molding process.

What Are the Various QC Checks Carried Out To Maintain Uniformity in Draft Angle Injection Molding?

Various QC checks like proper mold maintenance, parts inspection, monitoring of the molding conditions ensure uniformity in the process. This preserves the product quality and fulfills the customer’s requirements.
