What is Over-molding and 2k Injection Molding

over-molding and 2k injection molding

In the world of manufacturing, over-molding and 2K injection molding stand as innovative processes that enhance product design and functionality. Through these techniques, manufacturers can seamlessly integrate multiple materials into a single component, offering superior ergonomics, aesthetic appeal, and durability. This article delves into the processes, advantages, and applications of over-molding and 2K injection molding, along with a comparative analysis of 1K to 4K methods.

What will you learn?

You will gain insights into choosing the right process for their production needs, overcoming technical challenges, and optimizing material selection for product excellence.

Overmolding: Process and advantages:

What is overmolding?

Overmolding stands out as a top choice in manufacturing for its efficiency and reliability. This process seamlessly merges multiple components into a unified item. By doing so, it crafts single-piece products with high user satisfaction. It is celebrated for its ability to enhance product design and functionality.

Process:

Overmolding revolutionizes manufacturing by merging materials for improved design and function, setting new standards in product quality and performance.

  • Design Phase: Utilizes CAD/3D models to plan the product, focusing on material compatibility and aesthetic design, considering factors like material thickness and compression properties.
  • Pre-Molding: Involves creating a preformed insert using materials akin to the secondary Material through methods like injection molding.
  • Material Selection: Prioritizes materials (e.g., HDPE, TPE) based on their bonding abilities, compression characteristics, and temperature resilience to enhance product durability and performance.
  • Overmolding Execution: This entails inserting the pre-molded base into the mold and injecting the overmold Material under high pressure for solid adhesion.
  • Cooling and Ejection: Controlled cooling is adopted to maintain dimensions, followed by either manual or automated part ejection, with post-processing (sanding, trimming) to refine aesthetics and functionality.

The over-molding process showcases precision and innovation, delivering products that surpass expectations in design and usability.

Advantages:

Overmolding stands as a transformative manufacturing approach, offering both ergonomic and aesthetic enhancements to a variety of products.

  • Overmolding eliminates the need for screws and glue, simplifying production. This approach cuts assembly and part costs by automating assembly processes.
  • It enhances product ergonomics, offering a better user experience with comfortable grips.
  • Design flexibility increases, allowing for complex shapes without assembly constraints.
  • Overmolding improves quality and performance, enabling waterproof electronics and isolated connectors.
  • Conclusively, overmolding not only streamlines production processes but also significantly elevates product quality, merging functionality with design seamlessly.

2K Injection Molding: Process and advantages:

What is 2k injection molding?

2K injection molding is a cutting-edge process that creates complex parts by using two distinct materials. This method enhances both the functionality and appearance of plastic components. It allows for the addition of multi-color designs and intricate patterns, elevating product aesthetics and practicality.

Process:

2K injection molding represents a leap in manufacturing technology, enabling the creation of dual-material products with enhanced features, precision, and efficiency.

Initial Material Preparation: Materials are loaded into two heaters, becoming viscous for molding. The first Material is injected into an open mold cavity while the second waits.

  • First Transfer: A robotic system moves the newly molded part from the first to the second mold, preparing for the next material injection.
  • Second Injection: With the first mold empty, the second Material is injected, ensuring product consistency.
  • Final Transfer and Production Cycle: The process repeats, with robotic arms efficiently transferring parts between molds until the production goal is reached.

This sophisticated process exemplifies innovation in manufacturing, delivering high-quality, complex products with streamlined efficiency and consistency, setting new industry standards.

Advantages:

2K injection molding revolutionizes product manufacturing with its unique benefits:

It introduces unmatched design freedom by combining two materials in one component, broadening design possibilities.

This method slashes assembly costs, removing the need for additional bonding or fastening steps and streamlining production.

Efficiency skyrockets as it merges multiple functions into a single part, reducing the component count.

Enhanced material bonding boosts the final product’s strength and longevity.

Offers a wider material selection, catering to diverse product needs and specifications.

Achieves superior surface finishes and consistent quality, surpassing traditional methods.

Enables the crafting of intricate geometric shapes, expanding creative limits.

Delivers exceptional dimensional accuracy, ensuring precise product specifications are met.

This approach not only optimizes manufacturing processes but also elevates product quality and innovation.

What are the applications of over-molding and 2k injection molding?

Overmolding:

Overmolding finds its application across various industries, enhancing product utility and safety:

  • Hardware Tools: Tools like screwdrivers and hammers gain ergonomic grips through over-molding, making them safer and easier to use for tasks ranging from automotive repair to home improvement.
  • Surgical Devices: In the medical field, overmolding ensures that surgical tools such as syringes and catheters are not only safe but also easy to handle and clean, minimizing contamination risks.

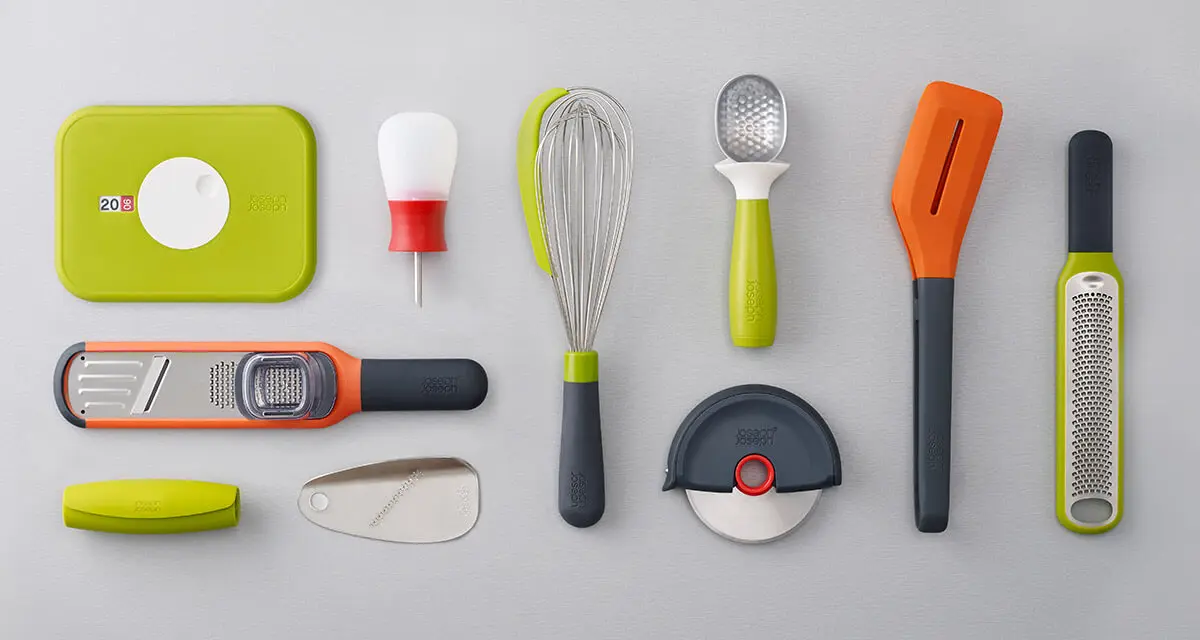

  • Household Items: Daily use items, including toothbrushes and kitchen utensils, benefit from over-molding by becoming more accessible to clean and use, enhancing user experience and product longevity.
  • Car Trims: Overmolding contributes to both the aesthetic appeal and functional benefits of car trims, offering customization in colors and materials that can reduce vehicle weight.
  • Cookware: For cookware over-molding is crucial for manufacturing components like spatula handles and pot covers, ensuring food safety and improving handling.

These examples showcase overmolding’s versatility in improving product design, safety, and functionality across diverse applications.

Two-Shot Injection Molding:

2K injection molding stands as a transformative technique across multiple sectors:

  • Automotive: This method is integral for manufacturing interior components, merging various materials and colors to achieve both strength and aesthetic appeal.
  • Medical Devices: Essential for crafting devices that are not only functional but also pleasing to the eye, it enhances the healthcare experience.
  • Tools and Toys: Allows for the creation of durable yet attractive items through innovative material combinations.
  • Consumer Electronics: Facilitates the production of electronics that are ergonomically sound and visually appealing, with enhanced durability and tactile feedback.

This innovative approach redefines product design, blending functionality, beauty, and resilience in diverse industry applications.

Mold Types: Shuttle vs. Rotational:

Shuttle Molds:

Shuttle molds are optimal for small to medium batches. They work by shuttling between stations for filling and cooling, enabling detailed work with efficiency in lower volumes. This method suits products needing precise features.

Rotational Molds:

Rotational molds support high-volume production and are ideal for large, hollow products. The mold rotates, heating and coating the interior evenly, facilitating seamless, durable items like tanks. Rotational molding is cost-effective for extensive runs.

Selection Criteria, Injection mold

Selection Criteria:

Choosing the right mold type is crucial for optimizing manufacturing efficiency and product quality. Each mold type brings distinct advantages tailored to specific production needs.

Shuttle molds offer flexibility and efficiency for smaller batches of specialized products, while rotational molds are geared towards larger volumes of consistent, hollow items. The choice between the two should align with the project’s scale, product design, and desired outcome.

Design Considerations for Overmolding and 2K Injection Molding:

Overmolding Precision Shut-offs:

For over-molding, precision in shut-offs is essential to block material leakage. It ensures that the secondary Material adheres correctly without seeping into unintended areas, maintaining the product’s structural integrity and aesthetic quality.

Injection Point Considerations:

The placement of injection points in over-molding is crucial for achieving strong bonds between materials. Effective locations prevent air traps and ensure that the overmold Material completely encapsulates the substrate, which is essential for product durability and performance.

2K Injection Molding Precision Shut-offs:

In 2K injection molding, shut-off accuracy is vital for material separation and preventing leakage between the two materials. Accurate shut-offs ensure clean, distinct layers, which are crucial for the part’s functionality and appearance. This precision contributes to the efficiency and quality of dual-material products.

Injection Point Consideration:

In two-shot injection molding, optimizing injection points is vital to control material flow and prevent mixing at the interface. Precision in the placement allows for the creation of clear, defined boundaries between the two materials, enhancing the product’s functional and aesthetic properties. This meticulous approach to injection point selection directly impacts the efficiency of the molding process and the integrity of the dual-material product.

Mold Design:

Overmolding: It requires molds tailored to the injection press’s specifications. Designs must match press dimensions, pressure, and clamping force for effective material bonding. Precision in mold design ensures flawless material integration, essential for product durability and aesthetics.

2k injection molding: 2K molding molds need precise engineering for dual-material injection. Compatibility with dual-injection presses, specialized channels, and gates for each Material is critical. This design precision facilitates efficient material flow, accurate bonding, and high-quality dual-material products, affecting production efficiency and final product integrity.

Material Compatibility and Selection:

Overmolding:

Compatibility and Bonding: It requires materials that can bond directly during the molding process. The primary consideration is the chemical and thermal compatibility between the substrate and overmold materials, ensuring a seamless and durable bond without the need for adhesives.

Functional Requirements: Selection focuses on the end-use of the product, such as selecting materials with high impact resistance for tools or materials that provide a comfortable, soft-touch surface for consumer electronics.

Two-Shot Injection molding:

Dual-Material Integration: The challenge in 2K injection molding is choosing materials that not only bond well but also maintain their individual properties after molding. This requires a careful assessment of each Material’s behavior under heat and pressure to ensure they merge into a unified part without adverse reactions.

End-Use Considerations: Materials must be chosen with the final application in mind, balancing factors such as rigidity, flexibility, and resistance to environmental factors. Automotive parts, for example, demand materials that withstand extreme temperatures and exposure to chemicals.

Technical Challenges and Solutions:

Navigating the complexities of 2K injection molding and over-molding presents distinct challenges, from cost management to material compatibility and design intricacies.

Challenges:

  • Cost Management: High production and material costs demand strategic financial planning.
  • Complex Design Handling: Intricate designs require advanced design tools and precision in execution.
  • Material Compatibility: Selecting materials that bond effectively while meeting product specifications poses a significant challenge.
  • Defect Minimization: Identifying and rectifying production flaws to ensure quality is crucial.
  • Efficiency Optimization: Streamlining operations to enhance productivity and reduce waste is essential.

Solutions for Overcoming Challenges:

Strategic Cost Reduction: Utilizing simulations for mold design and bulk purchasing materials can significantly lower expenses. Automation reduces labor costs and increases throughput.

Complexity Management: Advanced CAD software and precise engineering methodologies simplify complex design implementation.

Material Selection Strategy: Collaboration with material scientists ensures the selection of compatible materials, optimizing product functionality and durability.

Quality Assurance Techniques: Implementing real-time monitoring systems and stringent quality controls helps detect and address defects swiftly.

Process Efficiency Enhancement: Adopting lean manufacturing principles and continuous improvement strategies improves process flow and minimizes waste.

Comparative Analysis: 1K, 2K, 3K, and 4K Injection Molding:

These techniques offer versatile solutions to manufacturing challenges, scaling from simple to complex material integrations.

  • 1K Injection Molding: This is the foundational method, employing a single type of plastic. It’s efficient for mass-producing uniform components like containers and toy parts. The simplicity of 1K molding makes it cost-effective and suitable for a wide array of products needing consistent material properties.
  • 2K Injection Molding: Incorporating two different plastics, 2K molding allows for the production of parts with varied textures or colors in a single manufacturing cycle. Ideal for creating products like power tool handles or automotive dashboard components, it enhances functionality and aesthetic appeal without the need for assembly.
  • 3K Injection Molding: Expanding to three materials, 3K molding enables more complex product designs. This technique is used in applications requiring a combination of hard and soft plastics alongside additional functionality, such as waterproofing or impact resistance. It’s common in advanced consumer electronics and medical devices.
  • 4K Injection Molding: The most complex, 4K molding integrates four distinct materials. This process is reserved for highly specialized applications demanding the utmost in precision and material variety, like intricate multi-functional devices. Though challenging and expensive, it offers unparalleled customization and property integration within a single part.
Comparative Analysis, Injection Molding

Advancing from 1K to 4K injection molding enables unparalleled product customization, meeting diverse functional and aesthetic demands in modern manufacturing.

Conclusion:

In conclusion, over-molding and 2K injection molding are pivotal techniques in modern manufacturing, offering unparalleled design flexibility, improved product functionality, and enhanced aesthetic appeal. These processes, along with the comparative analysis of 1K to 4K molding methods, underscore the importance of selecting the right approach based on product requirements, material compatibility, and production challenges.

HiTop Injection Molding Services excels in these areas, providing expert guidance and execution in over-molding and multi-material injection molding projects. Their expertise ensures high-quality, innovative solutions tailored to meet the unique needs of each product, solidifying their position as a leader in the injection molding industry. Contact us if you are looking for injection molding services in China.
