Plastic Prototype Fabrication: 4 Key Prototyping Techniques

Plastic Prototyping

Plastic prototypes stand as essential milestones in the voyage of product development. They bridge the abstract world of design with the tangible reality of a physical product. Designers and engineers can explore aesthetics, functionality, and manufacturability by constructing models that closely resemble finished goods.

What will you learn?

This blog dives into the realm of plastic prototype fabrication, exploring four pivotal techniques that revolutionize how inventors and companies conceive and realize their innovative products. Each method uniquely contributes to transforming ideas into viable prototypes, setting the stage for successful manufacturing runs.

What is Plastic Prototyping?

Plastic prototyping is the creation of early product models using plastic. Designers use prototypes to see their ideas and test if they work properly. They can also find problems early on in the design process. Making prototypes is quick and affordable, which helps in improving the product.

Significance of Plastic Prototyping in Product Development:

It is essential for designing and engineering products. It checks if parts are in the proper shape, fit together, and work correctly. This reduces mistakes later on that could cost a lot to fix. Also, prototypes help show new products to people who might invest or buy them. Plus, you can get valuable opinions on your designs.

Importance of Testing Phases: EVT, DVT, and PVT:

  • Engineering Validation Testing (EVT): It ensures the design works well and all parts do what they should. We use softer tools and a fake factory line to make test units.
  • Design Validation Testing (DVT): It checks that we can make lots of the product without issues and that it meets all its needs for how it works and looks. We use more complex tools for this part because it’s about getting ready to make lots at once.
  • Production Validation Testing (PVT): The last check before we make many products. It makes sure we can keep making good quality stuff and keep going.

Plastic prototyping helps us determine if our product designs are good throughout each step before making significant amounts of them.

Role of Prototypes in Presenting Ideas to Investors and Market Testing:

Prototypes are essential when pitching to investors and testing the market. They make product concepts real for investors, showing how the product can solve problems. A robust prototype showcases functionality and value, convincing investors of a project’s potential.

For entrepreneurs, prototypes add weight to their pitches. They let founders explain their products better and address investor questions. This makes prototypes a crucial part of winning investment.

  • Market Testing:

Prototypes are also valuable in market testing. They collect user feedback and highlight design flaws before launching. This improves the user experience and saves time and money. By testing with real users, companies get data that shapes the final product to meet customer needs.

Which Things to Consider Before Plastic Prototype Development?

A Computer-Aided Design (CAD) model is a prerequisite for developing a plastic prototype. It digitally represents the final product, indicating how parts interconnect and operate. CAD models permit design visualization, simulation, and alteration before prototyping. These models are indispensable as they allow designers to scrutinize and optimize design elements such as strength and functionality before production setup.

Types of Prototypes: Visual, Mid-Stage Functional, High-Resolution:

It’s essential to recognize which type of prototype is necessary:

  • Visual Prototypes: They offer a crucial visual representation of the item being developed. At this phase, material strength and finish quality aren’t prioritized.
  • Functional Prototypes: These address whether the product will function as intended. They often demand more precise fabrication methods that mirror the end product’s materiality and traits.
  • High-Resolution Prototypes: The most elaborate form of prototypes that emulate the finished product closely, suitable for final assessments or marketing, calling for superior materials and refined manufacturing techniques.

Other Considerations:

Before advancing with development, also ponder these points:

  • The prototype’s intent can guide its making—for instance, it might undergo practical testing by likely users or be used in promotional endeavors.
  • Material selection impacts multiple aspects, including functionality, aesthetics, and environmental footprint.
  • Budgeting is pivotal; different prototyping methods have varying costs, which sometimes decrease significantly at higher volumes.
  • Production timelines affect method choice; specific techniques enable rapid turnaround within a day, whereas others could extend into weeks.

Understanding all these factors will direct choices regarding methods for prototyping while keeping project-specific requirements at the forefront.

What are the Four Key Prototyping Techniques?

In the dynamic field of prototype development, choosing the proper technique for rapid prototyping is vital for efficacy and precision. Let’s explore four essential prototyping techniques, each offering unique benefits and considerations tailored to transform conceptual designs into robust, testable plastic prototypes.

  1. Additive Manufacturing: 3D Printing:
3D prototyping

Additive manufacturing, or 3D Printing, constructs objects layer by layer. This contrasts with subtractive manufacturing tactics that remove products from solid material blocks. The layered approach of 3D Printing allows for geometrically sophisticated forms with potentially less material than traditional methods. It offers faster prototyping, personalization capabilities, functional integration, and decreased early-stage tooling costs.

Types of 3D Printing Technologies:

  • Fused Deposition Modeling (FDM):

FDM employs a thermoplastic filament flowing from a spool through a heated print extruder head that intricately layers the material to form an object. It streamlined production through lower costs and reduced lead times compared to conventional workflows.

  • Stereolithography (SLA):

SLA, a resin-based technique, uses lasers or projectors to solidify liquid resin into hard plastic. Its strength lies in fabricating detailed, watertight parts with advanced materials.

  • Selective Laser Sintering (SLS):

SLS utilizes lasers to sinter powdered substances into solid structures. Armed with crafting robust prototypes and end products swiftly at low costs, it’s particularly suitable for casting patterns.

Advantages of 3D Printing:

  • Design Flexibility: 3D Printing excels in generating intricate shapes that are unattainable by traditional means.
  • Swift Prototyping: The technology significantly accelerates iterative testing by rapidly producing prototypes.
  • Cost Reductions: Particularly advantageous for limited runs or complex pieces; it provides cheaper alternatives than older methodologies.
  • Eco-friendliness: Additive methods inherently waste less material, enhancing sustainability credentials.
  • Localized Production: Parts are manufacturable precisely when needed, diminishing storage and transportation demands.

Disadvantages of 3D Printing:

Despite numerous positives, it also comes with some drawbacks:

  • Speed Constraints: Large or complex items take considerable time to print relative to traditional processes.
  • Restricted Material Choices: The array of available materials is not as extensive as that of more established techniques.
  • Investment Costs: High-quality machines entail notable upfront investments despite decreasing overall costs over time.
  • Structural Concerns: Layer-by-layer construction can make parts needing to be more sturdy than those traditionally made.
  • Post-Manufacturing Workload: Desired finishes on printed objects may necessitate further processing, involving additional time and expense.
  1. Subtractive Manufacturing: CNC Machining:

CNC (Computer Numerical Control) machining subtracts material from a solid block to make parts. It uses computers to guide tools, cutting complex and accurate shapes. This method fits various fields like automotive, aerospace, and medical. CNC machines accurately work with many materials.

CNC Prototyping Process:

CNC Prototyping Process
  • Design and CAD Model: The process starts by turning a 2D or 3D CAD drawing into machine code.
  • Programming: This code, known as G-code, manages the machine’s functions, such as movement speed.
  • Setup: Tools and materials are prepared for the specific job on the CNC machine.
  • Trial Run: A test ensures no mistakes in the coding before total production begins.
  • Machining: Following the instructions, the machine removes material to create the part.
  • Finishing: The part might also get additional finishing, like sanding.

Advantages:

  • Precision and Accuracy: Parts come out very precise with tight tolerances using CNC machining.
  • Consistency: It produces many parts that look and function exactly alike.
  • Speed: This method usually works quicker than other ways of making prototypes for complicated pieces.
  • Material Versatility: It can shape many different materials, from plastic to metal.
  • Customization: Designs that are too intricate for other methods work well here.

Limitations:

  • Cost: Getting started with precise equipment can be expensive.
  • Size Limitations: The size of parts you can make might be limited by your machinery size
  • Material Waste: Since it takes away material to make things, there’s often leftover waste, which means resources aren’t fully utilized as compared to additive methods
  • Setup Time: Setting up takes extra time if you’re not doing many pieces simultaneously.

CNC machining is excellent for detailed prototypes and final products because it can use various materials and create complex designs. Still, its initial cost and material usage should be thought about when deciding how to make prototypes.

  1. Vacuum Casting:
Vacuum Casting

Vacuum or urethane casting crafts plastic or metal parts in small amounts. A mold is made from the original design, and liquid plastic or metal gets injected into it. Using a vacuum ensures no air bubbles are left, which means every part looks good and measures up accurately.

Process of Vacuum Casting:

Vacuum casting follows these stages:

  1. Master Model Building: First, we make a master model with 3D Printing or CNC machining.
  2. Mold Creation: A silicone mold is formed around the master model. It’s cut open to remove the model and equipped with gates and vents for the next step.
  3. Casting: We pour liquid plastic or metal into the mold under a vacuum to avoid bubbles.
  4. Curing: The filled mold goes into a heated room to solidify. When set, we can take out the finished piece.
  5. Finishing: We remove excess material from where the liquid was poured (gates) and smooth out the final touches.

Applications:

Different fields use vacuum casting because it’s precise and can make complex features:

  • The aerospace industry builds vital components like air ducts and even some parts you’d see on an aircraft’s exterior.
  • The consumer goods sector makes detailed items such as toys or sports gear.
  • The food and Beverage industry uses it to create packaging prototypes— anything from bottles to cans.
  • The Electronics field makes casings for gadgets like keyboards, chargers, and more.

Advantages:

Here are some benefits of using vacuum casting:

  • High-quality: Replicates fine details from the master model excellently.
  • Swift: Delivers results quicker than many manufacturing methods; this makes rapid prototyping possible.
  • Cost-saving: It’s generally more budget-friendly than CNC machining or injection molding since it’s meant for fewer pieces.
  • Versatile materials: Can work with different plastics, rubbers, and resins.

Limitations:

However, there are drawbacks, too:

  1. Molds wear out after about 25-50 uses and become less precise.
  2. This might not be ideal for extremely high precision requirements – other techniques do better here.
  3. Designed mainly for crafting smaller batches rather than mass production – so it is not great if you’re looking to produce lots at once
  4. Although great at mimicking plastics’ properties in their end products – metals won’t work because they need higher temperatures that silicone molds can’t withstand during casting.

4. Forming Method: Injection Molding

Forming Method, Injection Molding

Injection molding stands out for its ability to fabricate accurate plastic prototypes, especially in bulk. It consists of injecting molten plastic into a mold to cool and then ejecting the final shape. This method caters to sectors needing stringent precision, such as the medical and aerospace industries.

Injection Molding Process for Prototyping:

Injection Molding Process for Prototyping
  1. Designing the Part: Initially, designers draft a CAD model that reflects injection molding requirements, including specific angles and wall thickness.
  2. Creating the Mold: Depending on prototype needs, molds are crafted from aluminum or steel variants.

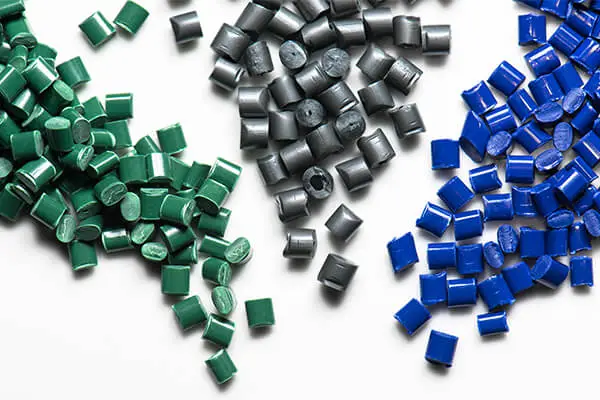

  3. Molding: Plastic material is heated until molten and forcefully injected into the prepared mold.
  4. Cooling and Ejection: The part is released after cooling inside the mold and solidifying.

Advantages:

  1. Efficient High Production: Post mold creation, injection molding facilitates rapid production favorable for medium to high-volume demands.
  2. High Precision: The technique provides unparalleled precision for applications with strict dimensional requisites.
  3. Material Versatility: Injection molding accommodates numerous plastic types, offering adaptability in prototype characteristics.
  4. Lower Concept Risk: Utilizing aluminum or similar soft metals for prototype molds allows ease of machining and adjustments, diminishing risk during the concept phase.
  5. Time Efficiency: By surpassing machining speed by over 40%, injection molding delivers timely outcomes.

Limitations:

  1. High Initial Cost: Specialized molds make initialization expensive within this process.
  2. Design Restrictions: Injection-molded part designs must align with processing capabilities and avoid overly large or thick sections that challenge plastic flow and cooling parameters.
  3. Costly Design Modifications: Alterations post-mold production can be excessive due to the potential remaking of molds.
  4. Not Suitable for Low-Volume Production: The upfront costs render it less beneficial for small-scale production runs.

To summarize, injection molding offers efficiency in producing multiple precise prototypes rapidly but requires consideration of its initial cost and design constraints relevant to intended production scales.

Which method should you choose?

The selection of a manufacturing method for creating plastic prototypes depends on the prototype’s intended use, design complexity, production quantity, and cost.

  1. Application of the Prototype:

The prototype’s purpose dictates the most fitting manufacturing technique:

  • 3D Printing (Additive Manufacturing): Good for quick prototyping and complex designs. Ideal for unique textures.
  • CNC Machining (Subtractive Manufacturing): Best for precise tolerances and intricate details. Offers more control over threads, undercuts, tolerances, sizes, and finishes.
  • Vacuum Casting: Produces close-to-final high-quality prototypes. Great for final evaluations and presentations.
  • Injection Molding (Forming Method): Suits high-volume prototype creation despite higher mold costs.
  1. Design Complexity:

Complex designs may limit manufacturing options. Intricate designs often need CNC machining or 3D Printing due to these methods’ ability to handle detailed internals or strict tolerances.

  1. Volume of Production:

Production volume affects method suitability:

  • For small runs, 3D Printing or CNC machining is usually more budget-friendly.
  • For mass production, injection molding is cost-efficient in the long run despite its initial higher tooling expense.
  1. Cost Considerations:

Cost influences method choice significantly:

  • 3D Printing generally offers a low-cost starting point.
  • CNC machining is moderately priced compared to other methods.
  • Injection molding incurs higher startup costs because of the price associated with creating molds.

Suitability of Prototyping Processes for Different Applications:

Prototyping ProcessSuitable Applications
3D PrintingRapid form factor prototyping, designs with complex internal features, prototypes requiring textured finishes
CNC MachiningDesigns with tight tolerances or complex internal features, prototypes requiring specific surface finishes
Vacuum CastingHigh-quality prototypes for final evaluations, marketing, and stakeholder presentations
Injection MoldingHigh-volume production of prototypes
Table 1: Applications of Various Prototyping Methods

Critical Considerations for Plastic Rapid Prototyping:

  • Determining the purpose of a prototype is crucial in plastic rapid prototyping. Prototypes may be intended for aesthetic displays or dynamic testing, which assesses the practicality and fit of a component.
  • The design’s intricacy, chosen prototyping technology, and material characteristics all influence part precision and assembly. More complex shapes need advanced processes that elevate cost and time to completion.
  • Production times for prototypes can significantly differ based on the utilized technique. Advanced tools with automation can yield prototypes in as little as one day. Some methods, however, could extend to weeks.
  • Rapid prototyping costs range widely from around $100 to $100,000 or above. These expenses are determined by the design’s complexity, materials used, and project urgency. Cost reductions are typically minimal even when increasing prototype quantities; hence, volume considerations are essential in method selection.
  • Choosing the suitable material is essential for plastic rapid prototyping as it affects part accuracy and assembly quality. Each prototyping process may accommodate certain materials better, further influencing cost considerations and project timing.

Plastic Prototype Cost Analysis:

Understanding the cost of creating plastic prototypes is vital for budgeting and decision-making during product development. Prototyping expenses depend on the methods, design intricacy, and required effort.

Plastic Prototype Cost Analysis

Factors Affecting the Cost of Prototype:

  1. Choice of Prototyping Method: Methods like CNC machining, 3D Printing, and small-batch production affect costs according to material requirements.
  2. Material Costs: Prices fluctuate based on the material type, quality, and amount needed.
  3. Labor Costs: Skilled workforce wages and time spent impact overall expenses.
  4. Equipment and Machinery Costs: Machinery acquisition, upkeep, and use factor into costs.
  5. Design Complexity: More sophisticated designs boost costs from $1,500 to over $20,000.
  6. Rush Orders and Capacity Saturation: Expedited prototypes can significantly raise prices.

Cost Comparison of Different Prototyping Techniques:

Prototyping TechniqueLow-VolumeMid-VolumeHigh-Volume
3D PrintingMost affordable for small quantities.Less effective as quantity grows.Impractical due to high unit cost.
CNC MachiningPricier than 3D Printing initially.Unit cost drops with more pieces made.Fine for large amounts needing precision or complexity.
Vacuum CastingSuitable for moderate amounts.Only fit up to 500 units.Unsuitable for mass production.
Injection MoldingHigh starting mold costs imply low suitability.Gains value with scale (about $0.99/unit at 10k pcs).Optimal in bulk manufacturing.
Table 2: Cost Comparison Table.

In conclusion, prototype manufacturing costs vary significantly by chosen method, design complexity, and output size. Analyzing these aspects is crucial when planning prototyping to ensure cost efficiency.

Transform Your Ideas with Hi-Top Industrial Plastic Prototyping Services:

Since its founding in 2002, Hi-Top Industrial has become a key player in plastic prototyping services. Nestled in Dongguan City’s Changan district, China’s manufacturing hub, Hi-Top boasts an 18,000 square-meter workspace and employs a skilled team of 330. The company specializes in constructing molds, prototype creation, tooling, fixtures, jigs, and mass production of injection-molded parts for diverse sectors.

  • Expertise in Various Prototyping Techniques:

We excel in leading prototyping methods such as 3D Printing, CNC machining, vacuum casting, and injection molding. The ability to produce roughly 800 injection molds annually displays their strength in generating high-quality prototypes for their clients.

  • Advantages of Partnering with Hi-Top Industrial:

Working with Hi-Top means collaborating with a firm dedicated to exceptional quality. They conform to global standards, boast efficient processes, and have a meticulous organizational structure that ensures precise molds. Partnering with us translates into prominent benefits: assurance of quality excellence promises improved organizational productivity.

  • Hi-Top Industrial- Your One-Stop-Shop for All Prototyping Needs:

That innovative concept you want to develop into a physical model is within your reach. Enlist the expert services offered by Hi-Top Industrial and push your enterprise forward while meeting international benchmarks. For all your prototyping requirements or to start turning concepts into reality, contact our experts; they are ready to assist in actualizing your vision through expertise-driven development processes.

Frequently Asked Questions:

Q1: What Are the Common Plastic Materials Used for Plastic Prototyping?

Common materials include ABS (Acrylonitrile Butadiene Styrene), Polycarbonate, PLA (Polylactic Acid), Nylon, Polypropylene, and TPU (Thermoplastic Polyurethane). Selection depends on the desired properties and prototype function.

Q2: What is the best technique for plastic prototype fabrication?

 A: The “best” technique depends on your needs. Consider part complexity, material choice, quantity, and budget. Vacuum casting is excellent for fine detail and small batches; 3D Printing offers customization; CNC machining provides strength; injection molding is best for large volumes.

Q3: How long do silicone molds last in vacuum casting?

 A: Silicone molds used in vacuum casting generally produce about 20 to 25 copies before quality degradation occurs and a new mold is needed.

Table of Contents

Related Post

Contact Us Today, Get Reply Tomorrow

You have two methods to provide file(s)

Note: Your information/file(s) will be kept strictly confidential.

Hi, I am Sparrow Xiang, COO of the HiTop company, me and my team would be happy to meet you and learn all about your business, requirements and expectations.
