The Role of Surface Roughness in Enhancing Product Performance

Surface roughness is not something we can ignore in industrial manufacturing. Dictating functionality and aesthetics and playing a vital role in dictating the finished product’s performance is up to its scope. This idea is crucial to comprehending how things function in practical applications and how end customers view them. It is frequently disregarded.

When talking about performance, it ends with defining the longevity of a product. The degree of surface smoothness affects various factors, including friction, wear resistance, and the ability to form bonds or coatings.

Rough surfaces may lead to increased friction and quicker wear, while a surface that is too smooth might not adhere well in specific applications. Therefore, it forces us to control surface roughness to ensure that products meet their intended specifications, perform reliably, and have an extended lifespan. Understanding and managing surface roughness is key to quality control in manufacturing processes.

Understanding Surface Roughness: An Overview

Surface roughness is characterized by the presence of tiny peaks and valleys on the surface of a product at the microscopic level. This texture results from the manufacturing process, whether machining, casting, or another method.

Parameters like average roughness (Ra), root mean square (RMS), or maximum roughness depth (Rz) are typically quantified to measure surface roughness. These measurements help understand how smooth or textured a surface is, influencing factors such as friction, wear resistance, and adhesion. It’s a crucial property to consider in engineering and manufacturing, as it significantly marks the performance and aesthetics of the finished product.

The Science of Surface Roughness in Molding:

Surface roughness parameters
Surface roughness parameters

Surface roughness in moulding is not merely a byproduct of the manufacturing process; it is a deliberate engineering choice that affects the functionality and aesthetics of the final product. A meticulously crafted mold with the appropriate surface finish can significantly enhance product performance by reducing friction, preventing adhesion issues, and ensuring proper material flow during molding.

In the context of injection molding, surface roughness can dictate how well the molded parts are released from the mold, affecting cycle times and production efficiency. The surface finish can impact functional parts’ mechanical properties and durability, such as gears or high-precision components.

High visual quality is required for engineering components used in consumer electronics and automotive applications since these components directly impact client satisfaction and perception. It takes an advanced comprehension of material qualities and molding techniques to strike the perfect balance between a surface quality that is both visually appealing and functionally acceptable.

Various tools and techniques can be used to guarantee the required level of surface roughness. This is crucial for manufactured product batches to be consistent and of high quality.

Measuring Surface Roughness: Top 4 Techniques

Surface roughness measurement is essential for maintaining product performance and quality. There are four main methods used to determine a surface’s roughness:

  • Direct contact systems:
Direct contact roughness measuring technique
Direct contact roughness measuring technique

It is also known as tactile or profilometer-based systems, using a stylus that physically interacts with the measured surface. The stylus is traced across the surface; because diamonds are durable and hard, most styluses have diamond tips. It sends data to a transducer, transforming the physical motion into an electrical signal as it moves across the peaks and valleys. The surface roughness is then represented by quantizing this signal.

These devices measure a wide variety of surface textures and are very adaptable. They do have certain limits, though. The stylus can wear over time, potentially altering the accuracy of the measurements. Moreover, the contact nature of the measurement means it is unsuitable for extremely soft or elastic surfaces, as the stylus could damage them.

  • Non-contact systems:

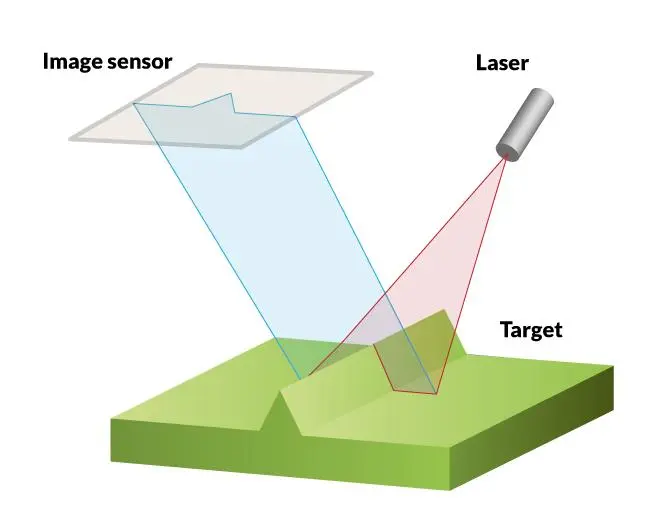

Non-contact roughness measuring technique
Non-contact roughness measuring technique

This technique is often based on optical principles and uses light, such as lasers or structured white light, to capture the topography of a surface without physical contact. These systems employ cameras or other sensors to detect the light’s reflection after projecting a light pattern onto the surface. The surface roughness is then ascertained by analyzing the variations in the reflection pattern.

This technique excels in measuring delicate or highly reflective surfaces where contact methods might fail. But, depending on the material and its optical characteristics, optical systems may be sensitive; therefore, calibration or compensation may be required to get accurate results.

  • Comparison Chart:

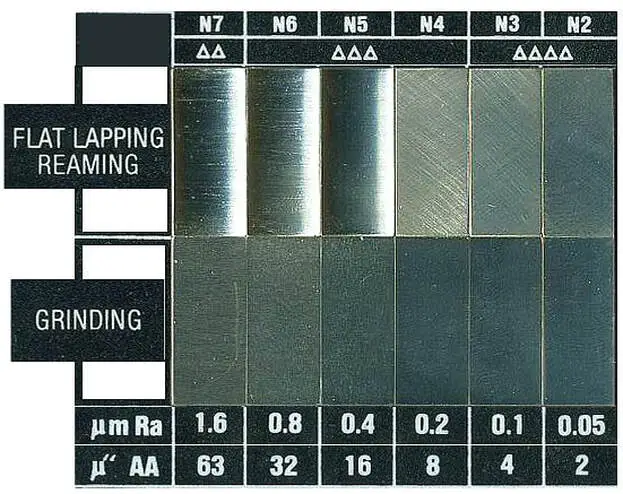

Surface roughness comparison chart
Surface roughness comparison chart

This roughness measuring technique involves using surface roughness comparators, which are sets of standardized samples with known roughness values. One can estimate a surface’s roughness by visually and tactilely comparing it to these benchmarks.

Although comparison approaches are not as accurate as direct or non-contact procedures, they are nonetheless a quick and affordable alternative to complex equipment for assessing surface quality.

  • In-process monitoring:

It involves the integration of measurement systems within the manufacturing equipment itself. These systems provide real-time data on surface roughness, allowing for immediate adjustments during production.

This type of monitoring is crucial for high-precision industries where maintaining surface quality is essential for the integrity of the product. To increase precision and predictive power, in-process systems are increasingly utilizing cutting-edge technologies like artificial intelligence, machine vision, and contact or non-contact sensors.

Each system plays a vital role in quality control and assurance in modern manufacturing. The selection of a particular system depends on many factors, including the material being measured, the required precision, the surface’s nature, and the measurement process’s economic considerations.

Tools for Measuring Surface Roughness:

  1. Stylus profilometers are among the most common instruments for measuring surface roughness. They drag a diamond-tipped probe, or stylus, across the surface. The stylus moves up and down over the surface irregularities, and these vertical movements are recorded to produce a surface profile.

The data collected is analyzed to calculate various roughness parameters, including Ra (average roughness), Rz (maximum height of the profile), and other statistical measures. Stylus profilometry is widely regarded for its high level of precision and reliability. However, since it is a contact method, it has the potential to mar soft or delicate surfaces. It is unsuitable for measuring rough surfaces due to stylus geometry constraints.

  1. Optical profilometers measure surface roughness using light, either through laser scanning or white light interferometry. These instruments project a beam of light onto the surface and measure the light scattered back to the sensor. The phase and intensity changes in the reflected light are analyzed to create a detailed topographic map of the surface.

This method is non-contact, preventing potential damage to the sample, and can quickly measure large areas. These profilometers can also measure surfaces that are too soft, sticky, or fluid for tactile methods. The downside is that transparent or highly reflective materials can sometimes pose challenges for optical systems, leading to measurement errors.

  1. Laser scanning employs a laser displacement sensor that projects a laser dot or line onto the surface. The sensor then measures the time it takes for the light to return to it, which changes as the laser moves over peaks and valleys.

Laser scanners are fast and can measure long distances, making them suitable for large components or measurements that need to be taken within a machine or assembly. They are also non-contact, avoiding damage to the workpiece. However, like optical profilometry, they can struggle with certain material types and surface conditions.

  1. Atomic Force Microscopy (AFM) is a type of scanning probe microscopy that provides nano-scale measurements of surface roughness. It uses a cantilever with a sharp tip that scans the surface. The cantilever deflection is measured as the tip moves over the surface, providing a topographic map at the atomic or molecular level. AFM is extremely sensitive and can measure surfaces’ mechanical, magnetic, and chemical properties in addition to their topography.

Each method has its advantages and limitations, and the choice of method often depends on the specific requirements of the measurement task. Factors such as resolution, speed, area of measurement, and the physical properties of the surface all play a role in determining the most appropriate technique.

Surface Roughness Symbols and Abbreviations:

Ra (Average Roughness) quantifies the average height deviations across the entire surface. It’s calculated by averaging the absolute values of individual deviations from the centerline, providing a comprehensive view of the surface texture.

Rz (Maximum Roughness Depth) signifies the vertical extent between the highest peak and lowest valley on the surface. It offers a maximum depth perspective, crucial for understanding the overall irregularities within the surface.

RMS (Root Mean Square) is the square root of the average of squared deviations from the centerline. It encapsulates the root mean square of surface deviations, offering a more nuanced evaluation of surface roughness.

Sm (Mean Spacing) measures the average distance between adjacent peaks, providing insights into the frequency of surface features. It indicates the spatial arrangement of irregularities, contributing to a detailed understanding of the surface texture.

Cut-off length refers to the size of the surface over which the roughness measurements are taken and averaged. In the context of a profilometer, it’s the section of the surface that the stylus traverses to acquire the data needed to compute the roughness parameters.

In American terminology, CLA (Centerline Average) is equivalent to Ra (Roughness Average). It is the arithmetic average height of irregularities from the mean line measured within the sampling length. The mean line is the line that bisects the profile such that the sum of the areas enclosed by the profile above the line equals the sum below it.

Basic Surface TextureMaximum Waviness Spacing Rating (C). Specify in inches or mm. Horizontal Bar added to Basic Symbol.
Roughness average values (A). Specified in microns, micrometers, or roughness grade numbersLay symbol (E)
Maximum  and minimum roughness average values (A), specified in microinches, micrometers, or roughness grade numbersRoughness sampling length or Cut-off rating (D). When no value is shown, use. 03 inch (0.8 mm)
Maximum waviness height rating (B) specified in inches or mm. A horizontal bar was added to the primary symbol.Machining allowance (F) specified in inches or mm
Basic Surface TextureMaximum Waviness Spacing Rating (C). Specify in inches or mm. Horizontal Bar added to Basic Symbol.
Roughness average values (A). Specified in microns, micrometers, or roughness grade numbersLay symbol (E)
Maximum  and minimum roughness average values (A), specified in microinches, micrometers, or roughness grade numbersRoughness sampling length or Cut-off rating (D). When no value is shown, use. 03 inch (0.8 mm)
Maximum waviness height rating (B) specified in inches or mm. A horizontal bar was added to the primary symbol.Machining allowance (F) specified in inches or mm

Surface Roughness Conversion Chart:

A surface roughness measuring chart is a reference guide to determine the surface finish quality of machined parts. It typically displays a range of surface texture grades with corresponding values that represent the average roughness (Ra) or other parameters like root mean square (RMS), maximum roughness depth (Rz), and mean spacing of profile irregularities (Sm). These parameters are measured in microinches or micrometers and reflect the height of irregularities on a surface.

Ra(micrometers)Ra(micro inches)RMS(micro inches)CLA(N)Rt(microns)NCut-off Length(inches)
Table 2: Surface roughness conversion chart as per DIN/ISO 1302.


Surface roughness is a vital parameter impacting a component’s functionality and lifespan. Accurate measurement and control are essential in industries where precision is paramount. It’s here that HiTop Industrial steps in. We stand as a one-stop solution for injection molding services, where maintaining your desired surface quality is not an aspiration but a given.

We merge expertise with practicality to turn your concepts into tangible excellence, ensuring that every surface meets your specifications, from the most rugged textures to the finest finishes. Contact us today and let your vision achieve its whole dimension.

Frequently Asked Questions:

Q1: What is the difference between roughness and waviness?

Roughness is the finer surface texture with small, closely spaced deviations, while waviness is a broader, more spaced movement on the surface. Waviness might be caused by machine or workpiece deflection, vibration, or heat treatment processes.

Q2: Are there standard classifications for surface roughness?

There are several international standards, including ISO and ANSI, which classify surface roughness and provide guidelines for measurement methods and acceptable values for various applications.

Q3: Can surface roughness be controlled during manufacturing, or is it only measurable post-production?

Surface roughness can be controlled during manufacturing by carefully selecting machining parameters like tool speed, feed rate, and the type of tooling used. In-process monitoring systems can also measure and adjust roughness in real time to ensure the surface finish meets the specified criteria.

Q4: Is there a relationship between surface roughness and corrosion resistance?

Yes, surface roughness can affect corrosion resistance. Rough surfaces provide more area for corrosive agents to attack and can trap particles or moisture that promote corrosion. Smoother finishes typically offer improved corrosion resistance by presenting fewer crevices and a reduced surface area for corrosion processes.

Q5: What mold manufacturing capabilities does HiTop Industrial offer?

We specialize not just in prototyping but also in precise mold manufacturing. Our capacity to take your project from initial concept, through detailed feasibility analysis, to creating molds that meet stringent quality standards showcases our end-to-end service promise. Whether it’s a draft on a napkin or a complete CAD design, we ensure your molds are crafted to perfection, ready for mass production with our cutting-edge facilities.

Q6: Is HiTop Industrial equipped to produce high-precision parts that require specific surface finishes?

Indeed, HiTop Industrial excels in crafting high-precision parts tailored to your exact surface roughness specifications. Our advanced manufacturing ecosystem, complemented by rigorous quality control measures, ensures each piece meets the demanded tolerances.

Our commitment to precision encompasses every stage, from initial design to the final product, assuring you of components that fit seamlessly into your assembly and perform flawlessly in their application.
