What’s CNC Turning? Its Process, Operations, Advantages

CNC machining is said to be a game-changer when we discuss the modern manufacturing industry. This revolutionizing technology has established itself as a highly efficient tool compared to its alternatives. Its high precision and repeatability are the major reasons for CNC’s dominance.

CNC machining is vigorously applied in various industries like aerospace, automotive, and medicine. The certain requirement for these sectors is that specific parts have to align with stringent specifications and tolerances in manufacturing processes.

This technique has optimized the speed of creating objects by a hundred times in the past few decades. It is justifiable if you are curious about what it is. What role does it play in the manufacturing industry?

What is its process? How does it operate, and What are its advantages? In this article, we are going to provide answers to all these questions.

Precision CNC turning machine in operation, shaping a metal component with high accuracy

CNC Turning: Definition

Computerized Numerical Control is the full form of CNC. CNC is a machining system in which specialized pre-programmed software controls the production equipment. This machining aids in cutting, shaping, and combining different materials such as composites, wood, plastic, and metal.

It allows for increased precision, efficiency, and reproducibility in the manufacturing of parts and components. CNC is able to do that by substituting automated procedures for conventional manual machining techniques.

There are multiple types of CNC machining processes like CNC drilling, CNC milling, CNC grinding, CNC turning, etc. The core of all these processes is CNC, but the processes vary, and that is how CNC machining becomes the broader term.

Coming to CNC turning, it is a special kind of CNC machining where a workpiece is rotated. As that happens, a cutting tool is moved along the rotating axis on a lathe controlled by a computer. The cutting tool motions along the machine’s axes— X, Y, and Z are all specified in this program.

CNC also specifies other settings like feed rate, cutting speed, and toolpath. This process is conducted with the aim of manufacturing symmetrical forms like shafts, pins, and other components with circular cross-sections. That too by removing material from the spinning workpiece. It is mostly applied to cylindrical parts.

CNC Turning: Process

The process of CNC turning simply involves taking a lump of plastic or metal and turning it into precise parts. CNC turning can be considered a tech that turns your vision into reality. Here is a step-by-step process of CNC turning.

A close-up of CNC turning machinery in action, creating brass components with precision, emphasizing the dynamic process and metal shavings

Step 1: Designing

The first step in the procedure is to create a digital sketch. With the support of computer-aided design (CAD) software, engineers carefully sketch the required part. These sketches are very precise, including every curve and measurement. The CNC machine follows this digital plan as a guide.

Step 2: Code Casting

Like people communicate using languages, G-code is the language that CNC machines use to communicate. The CAD design is converted into a set of exact instructions that employ this language. The speed of the machine and where to rotate the workpiece while moving the cutting tool are parts of these instructions.

Step 3: Setting Up

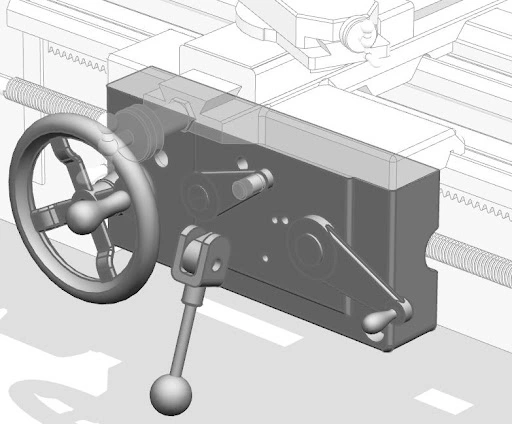

Introducing the main attraction now: the CNC turning machine, also known as a lathe. The functionality of this giant machine is to rotate the raw material—wood, metal, plastic, etc.—while holding it safe.

Step 4: The Cutting Tool

CNC turning machines employ various cutting tools. No two tools are alike; some are better at drilling holes, and others are better at shaping exterior diameters or making grooves. These implementations are kept on a turret carousel, where they may be easily switched out when required.

Step 5: Beyond Turning

The field of CNC turning is not limited to exterior shaping alone. With the use of live tooling, certain machines may stop rotating. Tasks like threading, drilling, and light milling can be carried out all inside the same setup.

This adaptability feature makes it possible to create ever more complex components. This setup acts like a one-stop shop because of this feature.

Step 6: Ensuring Perfection via Quality Control

The CNC machine keeps everything in check the entire time to make sure the cuts are made within the allotted tolerances. In addition, visual inspections and dimensional measuring instruments are used to make sure the finished product meets the required quality requirements.

Step 7: The Final Product

The CNC device releases the completed item after making the last cut. A tiny screw, a complicated gear, or even a vital medical component can all be created through this computerized manufacturing process. This exact interaction of digital design and the machine’s unwavering control makes it all feasible.

CNC Turning: Operations

CNC turning tools come in a wide range of varieties. This enables you to work on a workpiece in several ways. Both internal and external operations can be applied to these processes.

Adjusting the component’s outside diameter is made possible via external actions. On the other hand, the inner diameter is altered by internal activities. The particular operations of the machine vary according to the tool attached.

Industrial circular saw cutting through metal, sparks flying in a workshop environment

Basic Operations:

Turning: The main task in this operation is to use a cutting tool to remove material from a spinning workpiece. The idea is to obtain the required surface finish and diameter. It gives the shape to the workpiece along with the necessary dimensions by applying it to both interior and exterior surfaces.

Facing: This process, which is often performed on the workpiece’s end, produces a flat surface that is perpendicular to the rotation axis. Accurate assembly is facilitated by ensuring correct component seating and alignment.

Boring: Boring is a process that finishes or enlarges holes to exact measurements. To suit a variety of hole geometries, a range of boring tools in various sizes and shapes are available, guaranteeing precision in hole size and alignment.

Additional Operations:

Grooving: Grooving produces circular grooves on the surface of the workpiece with a predetermined depth. CNC is used to make snap ring grooves, oil channels, and internal and exterior grooves to improve the part’s operation.

Parting: This process with CNC involves cutting all the way through the workpiece to remove a completed item from the stock material. Parting-off is successful because, in essence, a deep groove is created that spans the whole length of the workpiece.

Threading: Threading creates internal or external threads for attaching and assembling parts. This process guarantees strong connections. The strengthening is possible as it creates helical grooves on the surface of the workpiece.

Knurling: To make the handle and grip better, knurling adds roughness to the surface. It enables the parts to be used more. This technique is frequently applied to knobs, handles, and other grabbing surfaces.

Improved Basics:

Taper turning: This technique produces conical forms by progressively altering the workpiece’s diameter throughout its length. It is used to produce shafts, tool holders, and other tapered components precisely.

Spherical Turning: Spherical turning achieves spherical or ball-shaped features on the workpiece, ideal for applications such as ball joints, bearing races, and other spherical components, ensuring smooth and precise movement.

Drilling and Reaming: CNC turning machines with live tooling capabilities may do drilling and reaming in addition to milling operations to produce holes and improve accuracy, providing greater variety in the machining processes.

Special Operations:

Polygon Turning: Polygon turning ensures compatibility with matching components by producing non-circular cross-sections with many flat sides that are useful for creating wrench heads, nuts, and other polygonal forms.

Hard turning: This process uses specialized equipment and procedures to get accurate results with increased efficiency. Hard turning is used on materials that are typically thought to be difficult to machine, such as superalloys and hardened steel.

Mill-Turn processes: By combining many processes into a single configuration, certain sophisticated CNC turning machines with integrated milling capabilities allow for the production of more complicated features and save processing time.

Advantages of CNC Turning

Because they offer unmatched versatility, efficiency, and precision, CNC turning machines have completely changed the metalworking industry. An In-depth discussion of the main benefits that make CNC an effective tool is as follows:

Accuracy and Uniformity:

Repeatable Accuracy: CNC machines have extraordinary precision when following pre-programmed instructions, guaranteeing constant dimensions and tolerances across production runs. This ensures that parts follow strict requirements and get rid of human mistakes.

Complex Geometries: CNC turning can produce intricate forms and features with astonishing detail, much beyond the capabilities of manual machining, because of its sophisticated toolpaths and multi-axis capabilities.

Surface Finish Excellence: CNC tools provide excellent surface finishes with fewer tool marks because of their regulated cutting pressures and speeds. This makes them perfect for applications where smooth surfaces are necessary for maximum performance.

Effectiveness and Output:

Faster Production: Compared to manual processes, production is greatly increased by the quick machining cycles. This is usually made possible by automated tool changeover and high spindle speeds. Faster lead times and higher output are a direct advantage of this process.

Lower Labor Costs: Since one operator can manage several CNC machines, fewer workers are needed. Labor-related expenses can easily be managed by the implementation of this technique. Moreover, human error and tiredness are reduced by CNC’s automated nature, increasing overall production efficiency.

Minimal Waste: CNC machines use sophisticated toolpaths that maximize material use. This optimizes utilization ultimately, resulting in lower material costs and less scrap. This method can work really well for industrial operations that care about the environment or for pricey materials.

Versatility & Flexibility:

Broad Material Compatibility: To meet the demands of different industries, CNC turning machines are capable of handling a wide variety of materials. This wide array of materials may include hardened steel, exotic alloys, and soft aluminum.

Variety of Operations: These machines are not just for simple turning; they can also be used for multiple things like drilling, threading, and knurling. This enables the reduction of the need for extra equipment and streamlines production procedures.

Rapid Prototyping: CNC turning’s speedy programming and production of parts make it perfect for design revisions and prototyping. This ultimately speeds up development cycles and enables the release of items onto the market.

Advantages in the Field of Injection Molding

When it comes to injection molding, there are several advantages CNC turning brings to the table. Here we are listing a few spaces of this sector.

Cross-section of an injection molding machine component showcasing detailed internal mechanics and precision parts

1. Mold Creation and Prototyping: Tight tolerances and intricate features in molds are attainable with CNC turning. This is because making high-quality molds that require little finishing is possible with CNC turning. Its agility speeds up the iteration process prior to mass production, as well as quick design modifications, testing, and optimization.

2. Mold Repair and Maintenance: Not only does CNC machining perform wonderfully in developing new molds, but it also helps maintain ones that already exist. CNC machining has efficiently provided accurate repairs for wear and tear, reducing downtime and maintenance to mold functionality.

3. Production Support: CNC turning has the ability to support production greatly. It works well at creating intricate electrode geometries for EDM and provides precision secondary machining. Along with that, CNC can help with quality control using specialized jigs and fixtures.

Wrapping Up

CNC turning continues to be at the forefront of innovation and pushing the limits of what is possible in production. As industries seek ever-tighter tolerances and more efficiency, all CNC processes shine bright. The future of CNC turning offers even higher precision, speed, and flexibility.

Apart from that, with continued improvements in technology and apparatus, CNC reinforces its place as a cornerstone of contemporary industrial production. Specifically, if we talk of injection molding, it has an incredible future there.For more such information and our injection molding services, contact us.
